Tuesday, August 13, 2013

Tiny Starfish hermaphrodites with live cannibal babies!

A very local speciality.
Image by Nuytsia@Tas
Data for this post was derived from Maria Byrne's 1996 paper in Marine Biology: "Viviparity and intragonadal cannibalism in the diminutive sea stars Patiriella vivipara and P. parvivipara (family Asterinidae) vol. 125: 551-567 which is a pretty neat piece of work that set the groundwork for their paper in Biology Letters which was just published today! Today's post has been reported in the news (here.

Our story begins with an overview of two unusual and quite tiny starfish! Some details:

  • Occur in Tasmania (Southern Australia)
  • Two species, Parvulastra vivipara and P. parvivipara occur on rocks and surrounding areas.
  • One of those starfish, P. parvivipara is among the world's smallest adult sea stars.

Indeed! Look how cute and tiny they are!
Tiny endemic.
Image by Nuytsia@Tas
But the  truth is that these tiny little starfish have all kinds of shocking sex secrets!

1. Both Species of Parvulastra are self-fertilizing hermaphrodites.
I have written about similar species in the same genus (Parvulastra) here.
Yes, that's pretty much self explanatory. Individuals are simultaneously both male and female AND if need be they can fertilize themselves.

They typically have between 6 to 8 female gonads and 1 predominantly male gonad. However the amount of sperm present would not be expected in those species which are exclusively self-fertilizers-so SOME outcrossing (ie sex with other individuals) does occur.
Patiriella vivipara
Image by Nuytsia@Tas

2. Parvulastra broods juvenile starfish in a brood chamber (aka "live birth" aka viviparity)
Several species of starfish are known to possess "brooding" behavior (I've written about them here). That, is the adult "carries" either internally or externally several tiny juvenile starfish with it until they are ready to move off on their own as full adults.

Each adult Parvulastra carried multiple juveniles across a range of sizes. Here was one example of a clutch containing 30 individuals from ONE large individual. Number varies with size..
scale bar= 1.0 mm, From Byrne 1996, Fig. 4e
These further images from Byrne's paper give you an idea of where they are located. Essentially throughout the body cavity between gonads. This differs from other species which can have them living around the mouth or in other locations.
From Byrne 1996, Fig. 4a
So, eventually, those little baby starfishes have to leave the comfort of the mother's body cavity. This happens when they reach about 25-30% of the parent's body diameter.

The downside of having brooded juveniles is that they tend not to go very far from the adult. In other species, the larvae would be dispersed over wide distances but here, they are retained or crawl away, staying near the parent..

Eventually, they exit via openings in the abactinal body wall called GONOPORES.

But what motivates the exit?

3. Those juvenile starfish are cannibals! (aka intragonadal cannibalism)
Life is harsh and these starfish know it better than anyone. The gonads in these animals are pretty small which implies that food for the juveniles isn't really enough to keep them sustained on their own..

So, as soon as the brooded juveniles develop a mouth they begin feeding on their siblings in the body cavity! In the specimens examined several of the larger brood individuals, which contained traces of the smaller ones in their gut contents in addition to other observations..

Several possible reasons may motivate the departure of the smaller juveniles from the brood space. Temperature or any number of factors.

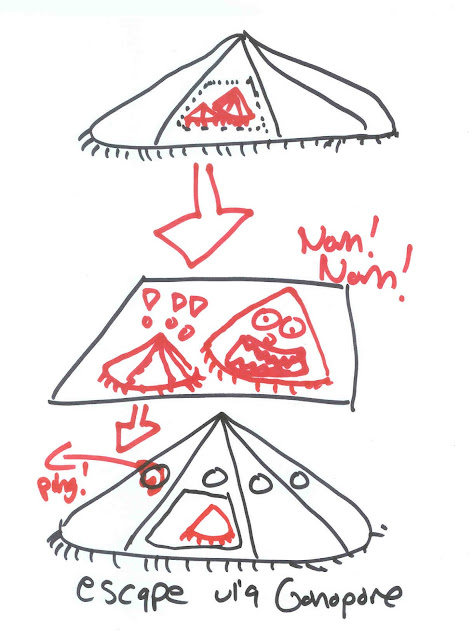

Byrne speculated on one reason that juveniles may vacate in order to avoid being fed upon by their larger siblings.. Here is a cartoon supplied by the Echinoblog Art Dept. which illustrates this notion (which to be honest was mentioned as only one sentence by Byrne in her paper).
Thus starfish join the illustrious ranks of those animals which have active, intrachamber type young which feed on one another including sharks, fishes and salamanders and insects-although there's a bunch more..

4. Exit to the Outside World!
Ultimately, then we see various brooded juveniles vacating the brood space via the gonopores (which flex and open) with the tiny juveniles emerging on the surface and eventually moving away...
Fr. Byrne 1996, Fig. 8b
Thanks to the intragonadal cannibalism however, sometimes you get a REALLY big one which continues to grow INSIDE the parent.  Ultimately reaching a size at which it cannot physically escape on its own..

Yikes! Talk about living in your parent's basement!
From Byrne 1996, Fig. 4h
5. Reproductive Impact on Populations
As indicated above, a recent paper by Carson Keever and others has found some significant drawbacks that this unusual reproductive behavior will have on populations of Parvulastra.
  • Self-fertilization by hermaphroditic adults and brooding behavior causes strong inbreeding and "genetic poverty"
  • There was nearly a complete loss of genetic diversity among all populations of Parvulastra and given the very restricted geographic range of these species+ the very limited way they can disperse their juveniles across wide distances there's little potential for populations to expand.
  • Thus, these live-brooding species with little to no gene flow display a high risk of extinction
So, there is serious concern about these species to withstand any kind of temperature or climate shift. The populations of these live-bearing starfish species is pretty small and pretty restricted. Potentially any kind of abrupt habitat change could wipe out these starfish with these unusual life modes..
